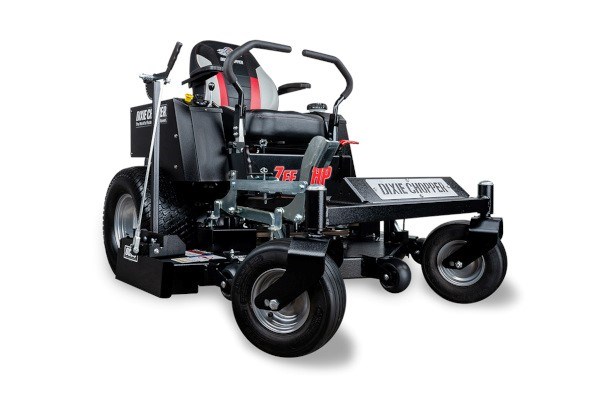

Dixie Chopper 2448KW

Double tap to zoom

COMMERCIAL DRIVETRAIN
Hydro-Gear® ZT-3100 transaxles with shock valves, charge pumps, steel-cut gears, and serviceable filters.
PROVEN POWER
A 24 horsepower engine from Kawasaki® to power through tough lawns.
COMFORT RIDE
ISO 360 Mount under a plush seat for a super comfortable ride.
CHUTE CONTROL
Take full control of your clippings with the standard OCDC.
LARGE REAR TIRES
22" drive tires for more traction, speed, and stability.
48" AND 54" ELITE CUTTING SYSTEM
Formed and welded 10 ga deck shell.

Model	2448KW
Engine
Manufacturer	Kawasaki® FR
Horsepower	24
Displacement	726cc
Air-cleaner	2 stage
Cooling	Air-cooled
Starter	Electric
Drive System
Dual hydrostatic	Hydro-Gear® ZT-3100 transaxles (internal expansion tank)
Ground speed	8 mph
Parking brake	Integrated in transaxle
Towing capacity	100 lbs
Mower Deck
Deck size	48"
Acres/hour*	3.1
Cutting height	1.5" - 4.5"
Deck height adjustments	Manual lift, 1/2" increments
Deck Quick-Lift	Integrated
Deck engagement	Ogura® 87 ft-lbs
Construction	10 ga formed & welded
Blades	3 - 17.25" x 2.5"
Blade tip speed (approx- imate)	18,500 fpm
Spindles	.75" effective diameter machined shaft
Spindle housings	1pc keyless sealed cast aluminum
Anti-scalp rollers	4
Pulleys	Vented split 3/16" steel deep groove
General
Battery	12 Volt, 300cca
Digital display	hour meter
Fuel capacity	4 gallons
Rear tires	22 x 11-10
Front tires	13 x 6.5-6
Frame	Welded 1" x 2", 2" x 2" tube, 10 ga formed
Fenders	Stainless steel
Floor-pan	Removable, steel
Seat	20" padded seat w/ armrests
Dimensions
Overall height	47"
Overall width (Chute down)	53""
Overall width (chute up)	57.25"
Overall length	76"
Weight	775lbs
